Composite fabric information on types and technical requirements of sword transfer wheels

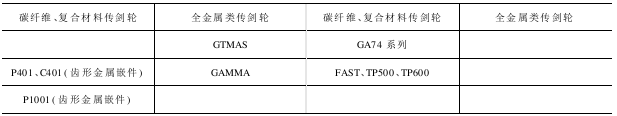

1. Types of sword-passing wheels. Sword-passing wheels are generally classified according to the material used in the main body of the sword-passing wheel. They are mainly divided into two categories: carbon fiber composite sword-passing wheels and all-metal sword-passing wheels. For the classification of the main sword-passing wheels, see Table 15-1.

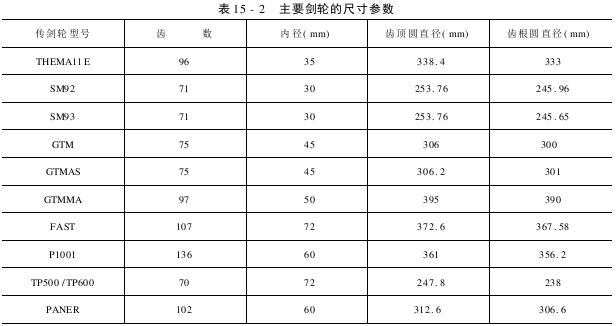

The type of sword transfer wheel matches the corresponding loom. Each sword transfer wheel is used on a specific model of loom. The specifications, size and shape of each sword transfer wheel are also They are different, so they must be equipped according to the part number in the loom model. 2. Technical requirements of the sword transfer wheel. The technical requirements of the sword transfer wheel are generally proposed by the main engine manufacturer according to the performance requirements of the main engine. They mainly include the outer diameter, inner diameter, number of teeth, radial runout, concentricity, Provisions are made for surface roughness, tooth flank roughness, hardness, resistance value (carbon fiber transmission wheels have this requirement), etc. The relevant dimensional parameters of some main sword wheels are shown in Table 15-2.

Regarding the specific technical parameters of the metal sword transfer wheel, each OEM has different Requirements, general standard levels are shown in Table 15-3.
