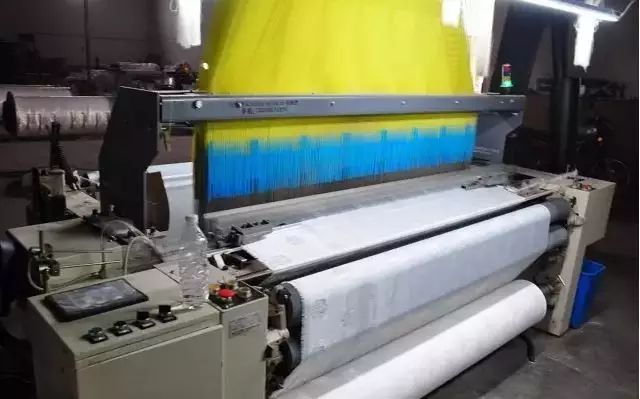

▲rapier loom

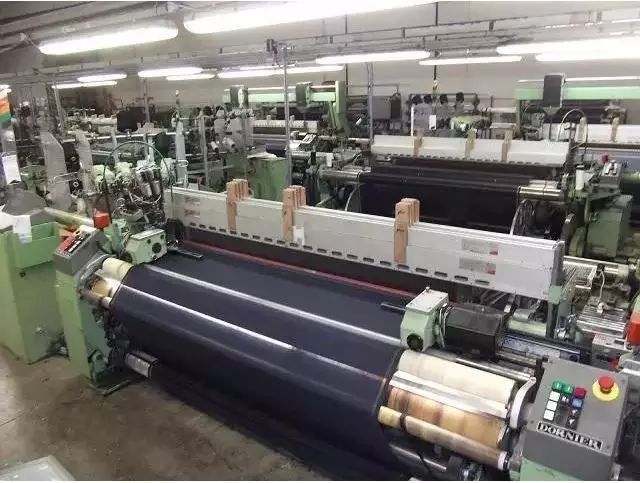

▲Jet loom
Fabric distinction:
To determine whether the fabric is sword weave fabric or air-jet fabric, you can look at the edge structure of the fabric:
(1) Usually the polyester-cotton thread is a rapier (edge-locking device) and the filament is an air-jet Weaving (Planetary Gear Unit).
(2) Air-jet double fabric, one side is thread The other side is made of filament. (The middle is a locking device, and both sides are equipped with weft planetary gears).
(3) Rapier double-open fabric, the side yarns on both sides are polyester-cotton threads (both are hemming devices).
Loom distinction:
Rapier loom:Use rigid or flexible rapier heads and belts to clamp and guide the weft yarn. In addition to being suitable for weaving plain and textured fabrics, the rapier loom is characterized by easy color change and is suitable for multi-color weft fabrics. It is suitable for the production of yarn-dyed fabrics, double-layer velvet fabrics, terry fabrics and decorative fabrics.
Jet loom: Use the jetted compressed air to pull the weft yarn through the shed. The biggest features of the air-jet loom are fast speed and high labor productivity. It is suitable for plain and textured fabrics, fine and high-density fabrics and large-volume fabrics.
Advantages and disadvantages of gray fabric:
(1) Jet machine produces gray cloth with general fine count yarn There are many varieties, with higher grades, mainly light and thin fabrics; rapier machines generally have more varieties of coarse yarns, with lower grades, mainly heavy fabrics.
(2) From the equipment point of view, air jet and rapier are just different in weft insertion.
(3) Weaving gray fabrics of the same organization, the cost of raw materials is the same, the weaving cost is lower, such as twill, the speed of the jet can reach up to more than 800 rpm, the rapier can only turn about 180-200 rpm, and the jet blocker can watch 10-12 units per person. The maximum number of arrow shafts is 4-6.
<p style="margin: 0px; padding: 0px; max-width: 100%; clear: both; min-height: 1em; white-space: pre-wrap; color: rgb(62, 62, 62); font-family: 'Helvetica Neue', Helvetica, 'Hiragino Sans GB', 'Microsoft YaHei', Arial, sans-serif; font-size: 16px; line-height: 1.75em; box-sizing: border- box !important; word-wrap: break-word !important; backgrouUse the jetted compressed air to pull the weft yarn through the shed. The biggest features of the air-jet loom are fast speed and high labor productivity. It is suitable for plain and textured fabrics, fine and high-density fabrics and large-volume fabrics.
Advantages and disadvantages of gray fabric:
(1) Jet machine produces gray cloth with general fine count yarn There are many varieties, with higher grades, mainly light and thin fabrics; rapier machines generally have more varieties of coarse yarns, with lower grades, mainly heavy fabrics.
(2) From the equipment point of view, air jet and rapier are just different in weft insertion.
(3) Weaving gray fabrics of the same organization, the cost of raw materials is the same, the weaving cost is lower, such as twill, the speed of the jet can reach up to more than 800 rpm, the rapier can only turn about 180-200 rpm, and the jet blocker can watch 10-12 units per person. The maximum number of arrow shafts is 4-6.
Commonalities and differences of fabrics
Commonality:All It’s raw edge and can be of the same specification.
Opposite gender:On the premise that the yarn count and specifications are the same:
① The jet weight is slightly lighter.
② The flatness of air-jet flat gray fabric is better than that of rapier production.
③ The fabric shrinkage of air-jet loom will be larger accordingly.
④ The quality of air-jet yarn is better than that of rapier.
AAA composite fabric mesh VEGTRHYTJnd-color: rgb(255, 255, 255);”>
Common characteristics and differences of fabrics
Common characteristics:All are rough edges and can be of the same specifications.
Opposite gender:On the premise that the yarn count and specifications are the same:
① The jet weight is slightly lighter.
② The flatness of air-jet flat gray fabric is better than that of rapier production.
③ The fabric shrinkage of air-jet loom will be larger accordingly.
④ The quality of air-jet yarn is better than that of rapier.
AAA composite fabric mesh VEGTRHYTJ
